Sharma Electricals are the leading Manufacturer and Supplier of Goods Lifts, Cage Lifts, Cage Hoist, Industrial Goods Lifts and Industrial Cage Lifts..
For a well-engineered installation, the choice of Goods Lift, Cage Lifts, Cage Hoist requires a close consideration of such factors such as size, weight of the materials to be transported, the method of handling etc. Directly and indirectly the results of properly planned Goods Lift, Cage Hoist show up in increased material handled volume and greater earning power.

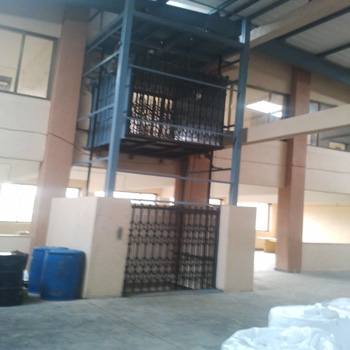

Our Industrial Goods Lifts consists of Cage Hoist Arrangement. These types of lifts are suitable for Lift Shaft or Lift Well as well as self-supporting steel structure. Sharma Electricals has unique arrangement of providing four guides for balanced loading & efficient drive. The goods lift is being operated by push button station fixed outside the cage on respective floors.

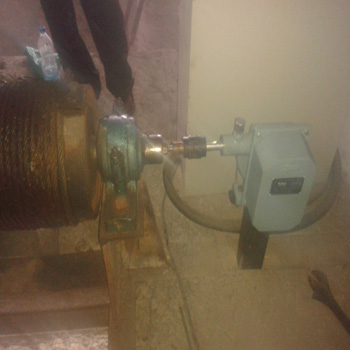

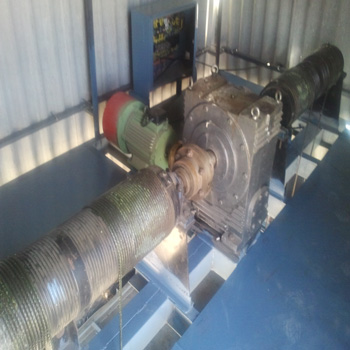

The landing doors are provided with mechanical and electrical locking arrangement. while Cage door is provided with electrical interlocking Hence unless Cage and landing doors are closed properly lift cannot be started. Additional Rotary limit switch is provided on Rope Drum End shaft , besides gravity limit switch is provided for extra safety. In case of failure of floor Level Limit switch at Ground Floor ,Rotary Limit switch comes into operation also for over hoisting gravity limit switch is provided , power to motor gets cut off by gravity limit switch upon over travelling of the cage.

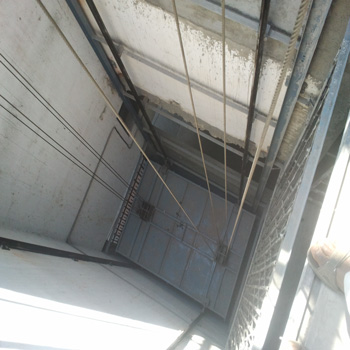

Every single rope is having rated capacity with min. 6 F.S. which in four fall construction will provide four times the required F.S.

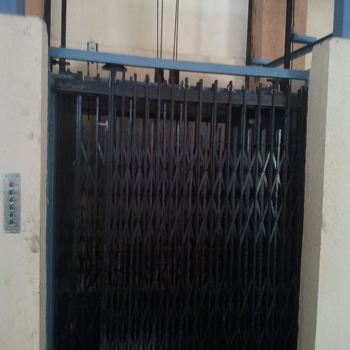

The cage is made of rolled steel sections and sides are covered with bumped sheets. Sides & Ceiling is provided with segmented interlock panels which are welded from outside which provide rigidity & strength to bear the impact while loading and unloading of material Cage top is covered with M.S. Sheets and bottom is covered with ms plate. Collapsible doors are provided on cage as per entry and exit position.
The cage is being guided with Guide Shoes on guide rail. Guide Shoes are provided to ensure that the cage travel remains in perfect true vertical direction.

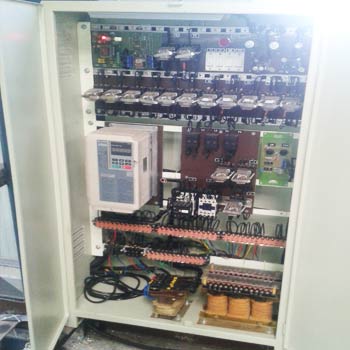

The modern microprocessor control system which features software designed for use with VVF drives as well as our control and safety components besides substantial energy savings .VVF Drives facilitates Dual speed which provides shorter travel time & smooth handling of cage at every floor.
